Norfolk's Roman Roads

A Lidar Re-appraisal

Lidar, by providing precise ground height data, has proved an extremely efficient way of detecting linear features such as Roman roads. Imagery derived from this data is often able to show clearly the surviving remains of the road agger, terraces, side ditches and cuttings, often where they cannot be identified easily on the ground through traditional fieldwork. Over the last 7 years or so a re-appraisal of Norfolk’s Roman network has been carried out using this relatively new technique filling in several gaps and even locating some “new” roads. In addition, the Norfolk HER records and other written sources (see references below) have been consulted. The thesis by James Albone (ref. 10) is deserving of special mention although he perhaps underestimated the effect Lidar would have on extending our knowledge..

The Roman road map is dominated by four settlements: Brampton, Caistor St Edmund, Saham Toney and Toftrees. Caistor St Edmund was obviously the most important by far and it was of course the walled capital of the Iceni Tribe.

Introduction

In those 7 years there has been quite a change to the Roman road map of Norfolk. The north of the county was not a bypassed backwater. The newly discovered Roman road from Brampton to Great Walsingham has opened up that part of the county. We now know there was almost certainly a sea port at Hickling, thanks to exending the road east from Brampton. In the west of the county, the Fens, here too was there was an integrated transport network - not road based but water based with Roman canals linked to old navigable river courses (see reference 12 below).

Norfolk's Roman Roads

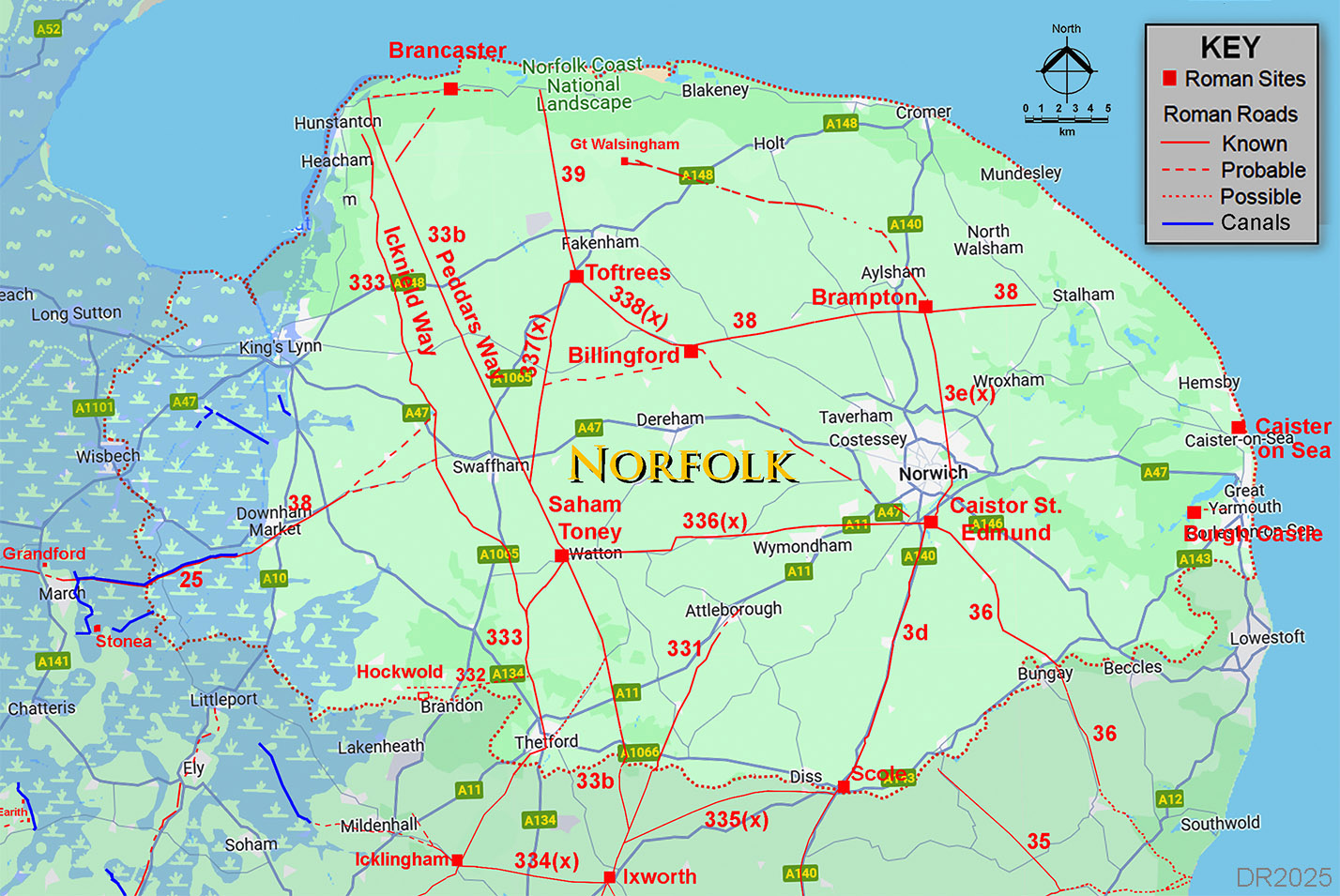

The Roman Roads around Brampton (in clockwise order)

Brampton to Hickling, Margary 38 Breakthrough in 2025 - this road's destination now known to be Hickling - plus a harbour there too!

Brampton to Caistor St Edmund, Route Discovered. The road south from Brampton didn't go to Thorpe St Andrew as previously believed but it went to Caistor St Edmund.

Brampton to Billingford, Margary 38 A well known road with just the first first mile or so needing Lidar assistance.

Brampton to Great Walsingham A "new" road largely discovered by David Staveley. Details too of Great Walsingham, an important Roman religious site.

Wayford Bridge to Spixworth Bridge A probable "new" road. An obvious short-cut to Wayford Bridge and the likely harbour near Hickling.

The Roman Roads around Caistor St Edmund (in clockwise order)

Caistor to Wainford, Margary 36 A well-established Roman road with just a few updates, at the beginning and at Ditchingham.

Caistor to Scole, Margary 3d A Roman road still much in use today.

Caistor to Saham Toney, Route Discovered. Not two roads but a through route finally connected up and it comes with a huge surprise!

Caistor to Billingford, Much of this "new" road has now been located including a fabulous section in Hockering Wood.

Roman Roads around Toftrees (in clockwise order)

Toftrees to Billingford, Another well-established road.

Toftrees to Peddars Way (North Pickenham) Lidar shows this road spectacularly well and yet virtually none it has survived as a modern road.

Toftrees to Overy Marshes (North Coast), Margary 39 Norfolk's other road to a north coast port - this time at Burnham Overy, near Holkham.

Peddars Way (north to south)

Section 1 - Holme to Great Massingham, Margary 33b Now a long distance footpath with generally a well=established route. Lidar has filled in a few gaps.

Section 2 - Great Massingham to Saham Toney, Margary 33b On this section we reach the important Roman Settlement/sites at Saham Toney.

Section 3 - Saham Toney to Brettenham, Margary 33b At last this road changes direction at Galley Hill.

Other Roman Roads

The Fen Causeway, Margary 25 & 38 An amazing road(s) across the fens and its probable extension onwards to the Icknield Way.

Billingford to Kempstone, Margary 38 This probable road could be part of the Fen Causeway but a connection is not yet confirmed.

The Icknield Way, Margary 333 Most likely a pre-historic trackway that was adopted and improved by the Romans where they deemed necessary.

Gasthorpe to Wymondham(?), Margary 331 An obvious road in the south of the county but tracing it north has proved problematical.

Saham Toney to Stanford (Icknield Way), Margary 339x A short connection to the Icknield Way.

Probable/Possible Roman Roads

Thetford to Stonebridge A logical connection between the Icknield Way and Peddar's Way. Perhaps best regarded as possible as it would duplicate RR339 above.

Hockwold to the Icknield Way, Margary 332. A large Roman settlement (Hockwold) and a long straight road - you would think must be Roman.

Brancaster East-West Road Brancaster was not located on the known Roman road network but there are some indications of a connecting coastal road.

Littleport to Brancaster A connection fron Peddars way to Brancaster was highly likely and this is perhaps the best option.

Ashill-Saham Toney The (probable) Roman enclosure at Ashill just north of Saham Toney was perhaps connected into the road network with perhaps 2 or 3 roads.

Burgh Castle Was there a road east from Burgh Castle towards the coast?

Acknowledgements

Top of the list for thanks must be to Norfolk Historic Environment Recod (HER) and the Historic Environment team at Norfolk County Council. Thanks are due to Mike Aerts for developing his bespoke "MAGIC" Lidar software that turns numbers into 3D virtual reality models

Raw (ascii) Lidar is copyright The Environment Agency. The processed Lidar data shown here is copyright David Ratledge. Having said that, you are welcome to use any of the Lidar images providing a source reference is given.

Mapping used is generally Ordnance Survey Opendata supplemented by Bing Mapping and Aerial Photography for selected areas. Google imagery has also been utilised.

References:

Below are general references. Specific ones pertaining to a particular road are included on the appropriate web page.

1. Faden’s Map of Norfolk, c.1790-4, digital online version by Andrew Macnair. The earliest large-scale map of all of Norfolk.

2. Roman Roads in Britain, Codrington, 1903/1918. (Bill Thayer's online version).

3. Roman Roads in Britain, I.D. Margary, 1957. Way out of date but still the first "go to" source book. The Margary road numbers used here are from this book.

4. East Anglian Archaeology Report No.5 Norfolk, Norfolk Archaeological Unit, 1977. Toftrees to Billingford road and Brisley to Terrington St. Clement road (unlikely).

5. Venta Icenorum - Caistor St Edmund Roman Town, John A. Davies, 2001. Includes the roads immediately adjacent to the town.

6. Roman Routeways across the Fens, Heather Wallis, EAA Occasional Paper 10 (2002). The central section around Nordelph is covered in detail.

7. Norfolk Origins 3 - Celtic Fire and Roman Rule, Bruce Robinson & Tony Gregory, 2003. Good general description of Roman Norfolk..

8. Norfolk Origins 2 - Roads and Tracks, Bruce Robinson & Edwin J. Rose, 2008. Has a map and short description of each of Norfolk's Roman roads.

9. The Land of Boudica - Prehistoric and Roman Norfolk, John Davies, 2008. Comprehenisive study by the keeper of Archaeology at Norwich Castle Museum.

10. Roman roads in the changing landscape of eastern England c.AD410 – 1850, James Albone, 2016. PhD thesis (University of East Anglia) - the Roman roads through time.

11. The Roman Roads or Norfolk, A Lidar Reappraisal, David Ratledge, Itinera, 2022. My attempt to bring Norfolk up to date. Note any updates since then are here.

12. The Roman Transportation Network in the Eastern Fens, Ratledge, D. & Smith, D., 2026, Itinera Vol. V, p73-100.

Norfolk Heritage Explorer The primary site for all Norfolk's Historic Environment Records (HER).

Contacts:

To contact David Ratledge regarding the Norfolk web pages, please email me.
